thermolinePURE

Description

For all processes that involve cooling and heating in the food and beverage industry, the thermolinePure product line has a plate heat exchanger which is suitable for this application.

Our extensive experience in the high pressure application provides the highest quality in thermolinePure plate heat exchangers. Our pasteurisers for beer, water, soft drinks and other beverages meet the most stringent requirements.

thermolinePure

Frame types

PLATES RANGE

features

Connection variants

  • Dairy screwed pipe joint – DIN11851
  • Aseptic connection DIN11864-1 (screwed pipe joint) DIN11864-2 (flange connection)
  • APV-FN1 / FG1 (APV small flange)
  • Neumo BioConnect® Clamp Connection – DIN32676
  • Welding neck flange

Energy-saving operation

  • Efficient heat exchanger for small Δtm
  • Heat recovery up to 96%

Gaskets

  • NBR
  • EPDM
  • FKM (Viton)

Simple assembly and servicing

  • Low weight
  • Compact design
  • Low maintenance
  • Easy to clean

Available accessories

  • Stainless steel protection sheet
  • Brass nuts
  • Tightening bolts covers
  • Hook wrench
  • Sanitary feet
  • Intermediate frames with double connection

Rack frames

  • Stainless steel
  • Carbon steel, stainless steel cladded
  • Intermediate frames with connections

Advantages

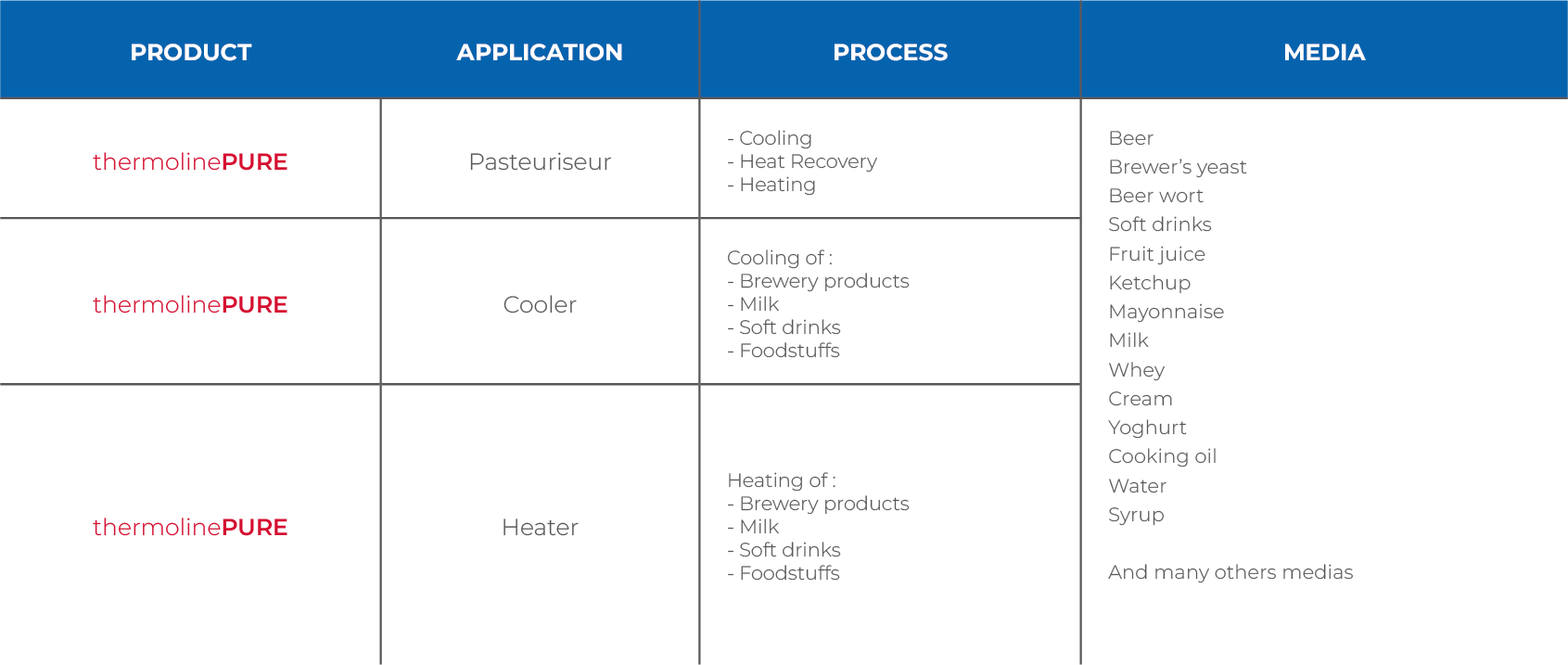

Your applications at a glance
